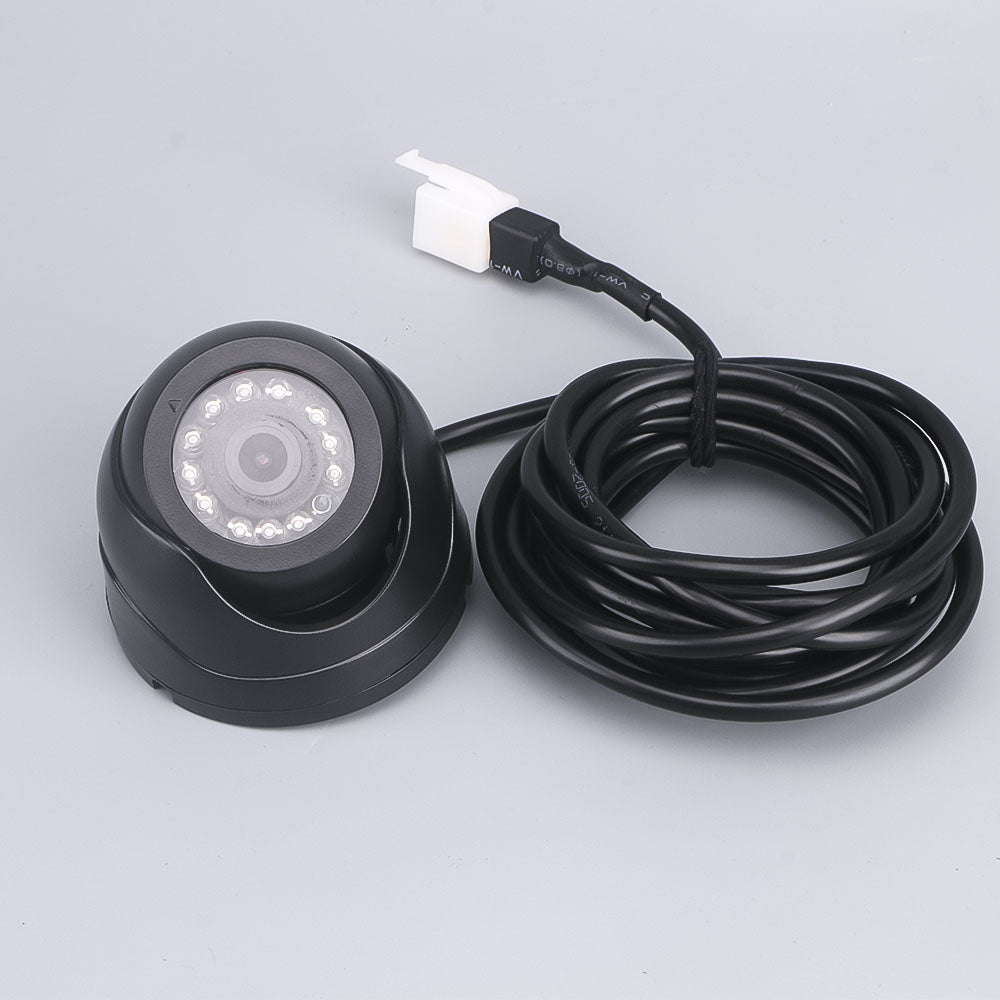

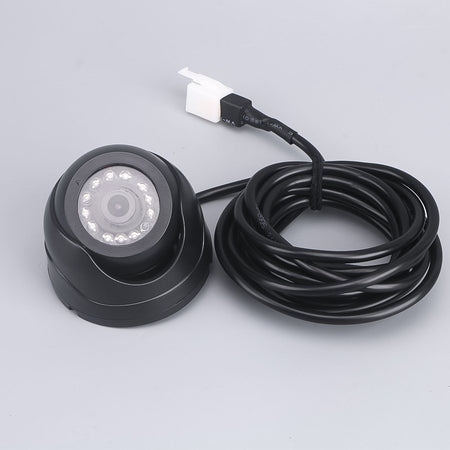

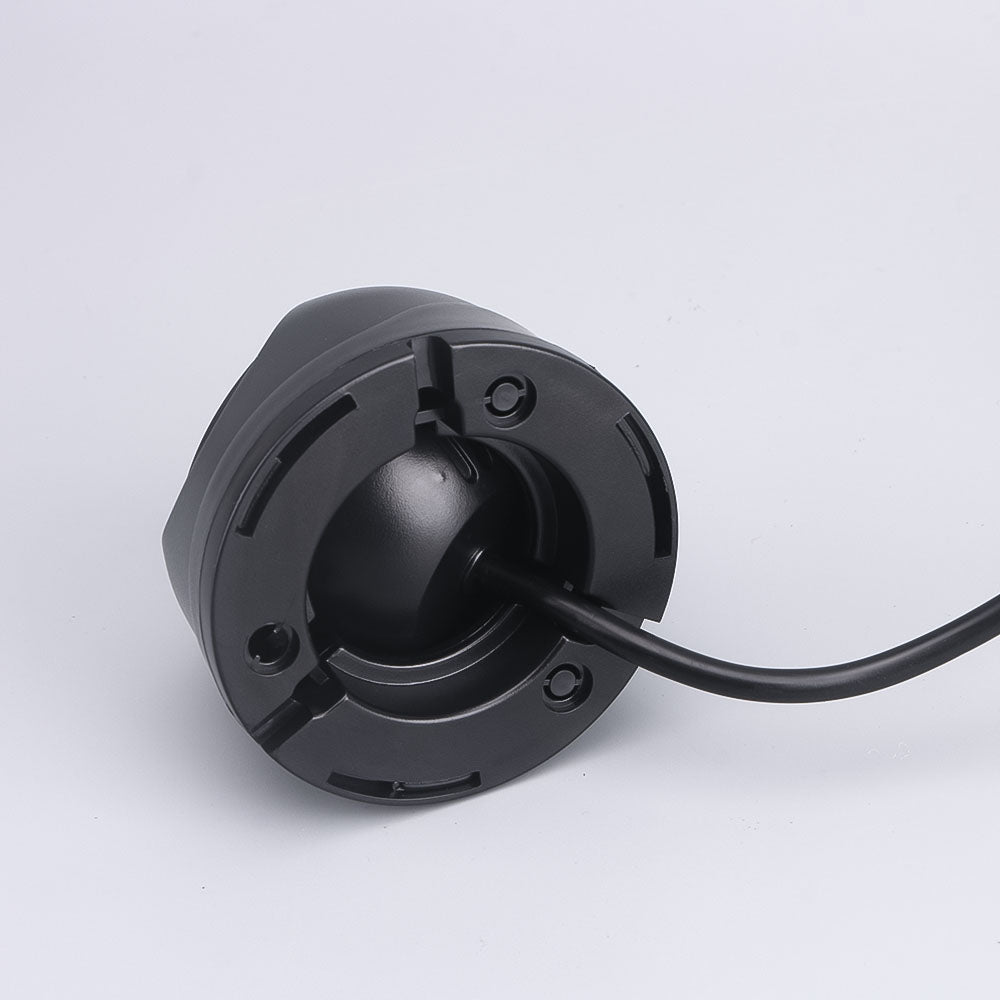

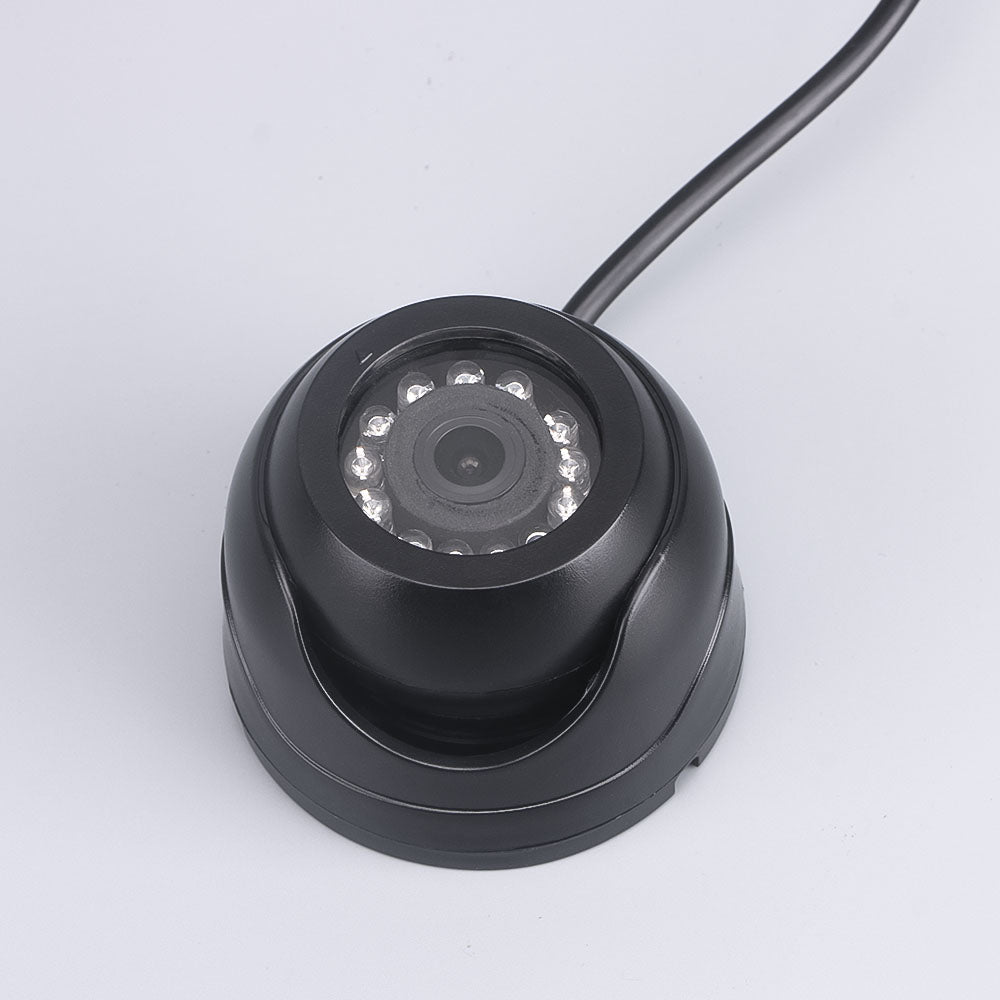

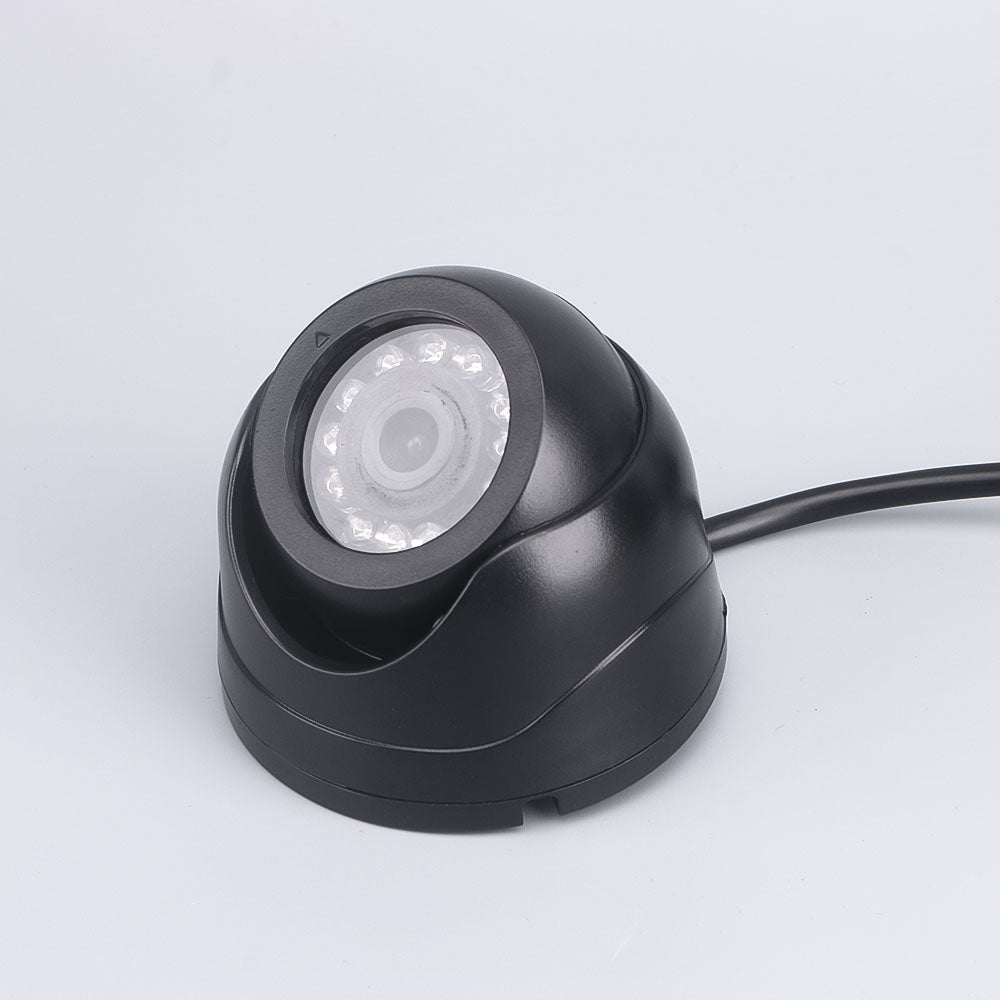

200W-Pixel Camera for MiCODUS MV510G Car 4G Tracking Device Infrared Light Camera With 360 Degree
Regular price
$69.00
Couldn't load pickup availability
NOTE: Camera has to be used along with Vehicles GPS Tracking Device.
Product Description:
The MiCODUS serial camera is a 2,000,000-pixel industrial-grade image acquisition and processing device. Connected with MiCODUS GPS Tracker, it integrates image acquisition, shooting control, infrared light, data compression, and serial transmission. Its built-in high-performance digital signal processing chip realizes high-ratio compression of the original image. Product image output in standard JPG format, which can be easily compatible with various image processing software; The additional infrared light can make the product image clearly under various lighting conditions.
The MiCODUS serial camera is a 2,000,000-pixel industrial-grade image acquisition and processing device. Connected with MiCODUS GPS Tracker, it integrates image acquisition, shooting control, infrared light, data compression, and serial transmission. Its built-in high-performance digital signal processing chip realizes high-ratio compression of the original image. Product image output in standard JPG format, which can be easily compatible with various image processing software; The additional infrared light can make the product image clearly under various lighting conditions.
|
Item
|
Specification
|
|
Image pixel
|
200W/100W pixels OV7725 1/4 CMOS
|
|
Lens
|
2.8MM infrared IR940(S009:IR650)
|
|
Output format
|
Standard JPG
|
|
LED
|
S002/S004:Φ5mm IR940 12 Light dispersion 120 degrees,SF009:8pcs
|
|
Working environment
|
S002/S004:-20℃~80℃ , S009:-35℃~80℃
|
|
Humidity
|
20%~80%
|
|
Serial port rate
|
115200
|
|
Line length
|
Standard version 2M(Customizable for bulk order)
|
|
Interface definition
|
RS232 ( TX ,RX,GND ,5V)
|
|
Operating Voltage
|
5V
|
|
Working current
|
Less than 80mA (When the infrared light is on, S002:170mA,S004/S009:180mA)
|
|
Minimum illumination
|
1 lux
|
|
white balance
|
Automatic
|
|
Lens
|
S002/S004:3.6mm ,S009:2.8mm
|
|
Wxposure
|
Automatic
|
|
Resolution
|
640*480 ,320*240 ,160*120
|
|
Camera angle
|
S002/S004:90°,S009:120°
|
|
Night vision on illumination
|
5 lux
|
|
Night view image
|
black and white image
|
|
Night vision distance
|
S002:2~3 meters,S004:3~5 meters,S009:1~2 meters
|
|
Working environment
|
S002:Indoor (not waterproof),S004/S009:Indoor or outdoor (IP67 waterproof)
|
