Demension
|
120(L)*69(W)*19.5(H)mm
|
|
Color
|
Black
|
|
Battery
|
5500mAh Lithium Batter; 3.3-4.2V DC; Charge 5V@1A
|
|
Weight
|
165g
|
|
Working Mode
|
Precise mode; Intelligent mode; Power saving mode
|
|
Current
|
30uA(Power off); LTE data(400mA); Idle(3mA)
|
|
Temperature / Humidity
|
-20℃~60℃ /20%~90%RH
|
|
Bluetooth
|
BLE 4.2
|
|
GSM Band
|
B2/B3/B5/B8
|
|
LTE CAT M1 Band
|
B1/B2/B3/B5/B8/B12/B13/B14/B18/B19/B20/B25
|
|
LTE CAT NB2 Band
|
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B71/B85
|
|
Antenna
|
Built-in GSM/LTE CAT M1/NB2 antenna, ceramics GPS antenna
|
|
Module Certificate
|
GCF, CE, PTCRB, RCM, FCC, IC, JATE, Anatel, FAC, CCC,tec.
|
|
GNSS Band
|
1575MHz
|
|
GNSS Accuracy
|
＜2m @ Open Sky
|
|
LBS Accuracy
|
＞200m (Depend Density of Base Stations)
|
|
Hot/ warm / cold fix time
|
＜3s, ＜26s, ＜35s, @ Open Sky
|

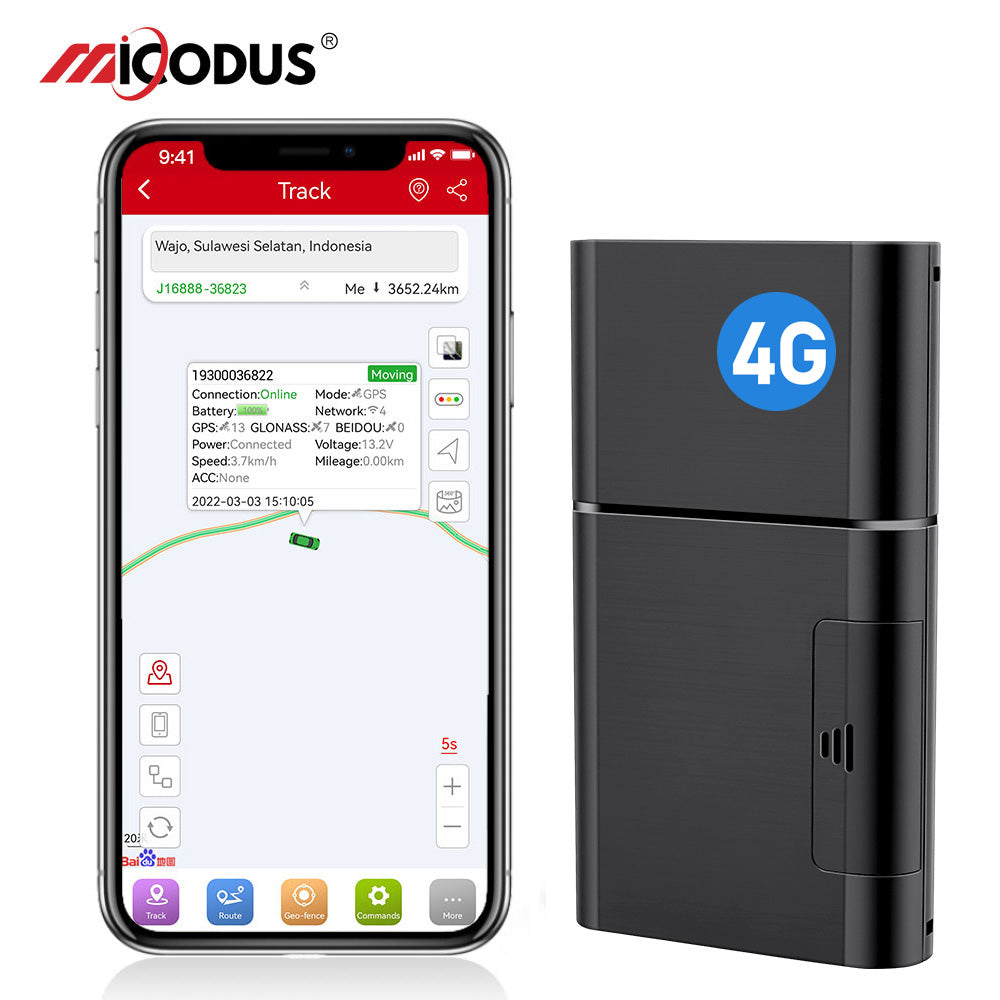

4G LTE CAT M1 Wifi Positioning Wireless Asset GPS Tracker Temperature Monitor 5500mAh Truck GPS Tracking Device MiCODUS ML208G
Regular price
$71.80
Download
Couldn't load pickup availability
Main Functions:
1. GPS+GLONASS+BEIDOU+GALILEO+Qzss+WiFi+LBS
2. Realtime Tracking
3. History Route Playback
4. Built-in 3.7V 5500mAh Rechargeable Li-ion battery
5. HOST Tracker for Gathering Temperature Data from Beacons( 1 Host can connect 24 Beacons at the most)
8. Light Changing Alarm, Overspeed Alarm, Shock/Vibration Alarm, Movement Alarm, Geo-fence,
Temperature Monitor with Beacon
9. Multiple Working Modes: Realtime tracking mode, Power saving mode, Hibernation mode
10.LIFETIME FREE Web Tracking Platform and Mobile APP
11. The Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
1. GPS+GLONASS+BEIDOU+GALILEO+Qzss+WiFi+LBS
2. Realtime Tracking
3. History Route Playback
4. Built-in 3.7V 5500mAh Rechargeable Li-ion battery
5. HOST Tracker for Gathering Temperature Data from Beacons( 1 Host can connect 24 Beacons at the most)
8. Light Changing Alarm, Overspeed Alarm, Shock/Vibration Alarm, Movement Alarm, Geo-fence,
Temperature Monitor with Beacon
9. Multiple Working Modes: Realtime tracking mode, Power saving mode, Hibernation mode
10.LIFETIME FREE Web Tracking Platform and Mobile APP
11. The Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
Beacon Features
GNSS/Wi-Fi/LBS
It globally supports various GNSS satellite positioning system, such as GPS, GLONASS, BEIDOU, Galileo, Qzss, it also can locate via Wi-Fi and LBS, never worry about the problem of not positioning in GPS blind area.
Long Standby Time
With built-in 5500mAh battery the device can last around 7-10 days.
Waterproof IP65
This tracker has super water-resistant to ensure stable operation in tough environment. It is not only effectively prevent dust from entering, but also don't worry about being splashed by water.

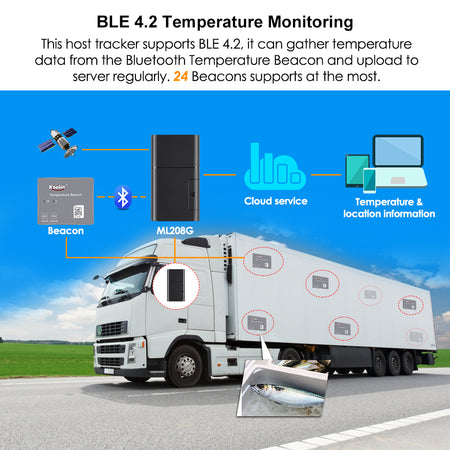

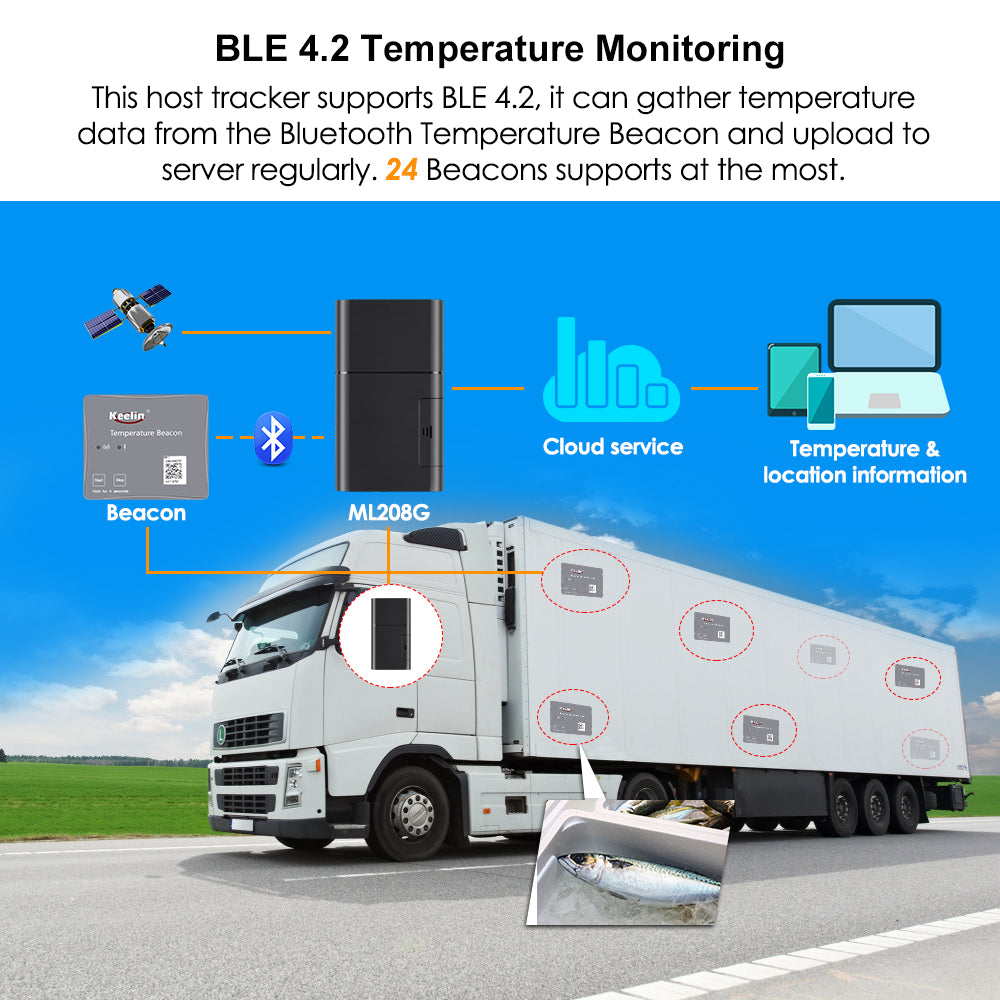

BLE 4.2 Temperature Monitoring
This host tracker supports BLE 4.2, it can gather temperature data from the Bluetooth Temperature Beacon and upload to server regularly. 24 Beacons supports at the most.
Safety Boundaries Geo-fence
You can set up a geofence for the GPS tracker to restrict its movements within a district. The unit will send SMS to the authorized numbers when it goes in and leave out of this district.
Vibration Alarm
With high quality built-in sensitivity 3D sensor, once the device detected vibration it will send alarm message out.
Light Changing Alarm With high quality built-in sensitivity light sensor, once the tracker detected the surrounding light change it will send alarm message out. For example, if someone take away the device or opendoor/box this tracker will can detect it
OTA Firmware Upgrading
This tracker supports downloading configuration file over the air for the update of the local configuration.
Web Tracking Platform and Mobile APP
Lifetime free Micodus tracking system! Web server and both iOS and Android version APP are available!
www.micodus.net
APP: MiCODUS
