Car Relay GPS Tracker 4G MiCODUS MV930G Mini Spy Motorbike Vehicle Gps Tracking Device Anti Jammer Easy Hidde

In stock
No reviews
$26.90
4G MV930G
Download
📕 User Manual
Description Reviews Shipping information
Main Features:
1. Network: 4G LTE FDD+ 2G GSM/GPRS
2. ACC Detection
3.Mini and Hidden Design
4. Wide Operating Voltage 9-95V DC, compatible with vehicles on the market!
5. GNSS+LBS+BDS+AGPS Positioning Ways.
6. Realtime Tracking.
7. History Route Playback.
8. Remotely Cut Off & Resume Fuel.
9. Signal Jamming Detection
10. Low Voltage Alarm
11. Anti-theft Alarms: Vibration alarm, Displacement alarm, Geo-fence alarm, Power failure alarm, Engine ON/OFF Alarm, Overspeed Alarm.
15. Remotely Firmware OTA
16. ONE YEAR FREE WEB TRACKING SOFTWARE AND MOBILE APP.
17. MiCODUS Tracking Platform Supports Multiple Languages.

www.micodus.net
iOS&Android APP: Micodus

Model
MV930G
Weight
70g
Dimensions
76mm(L)*32mm(W)*32mm(H)
Battery
Built-in 3.7V 60mAh Polymer Battery
Working Voltage
9-95V DC
Working Current
12V/Average 56mA
Sleep Current
12V/Average 7.7mA
Working Temperature
-20℃ - 75℃
Working Humidity
10%-85%RH
Built-in Memory
5000pcs GPS data can be stored at network blind area
SIM Card
Nano SIM
Celluar Antenna
Built-in, FPC
Working Frequency (SA)
 2G GSM/GPRS: 850/900/1800/1900MHz
4G LTE-FDD: B1/B2/B3/B4/B5/B7/ B8/B28/B66
Working Frequency (EU)
2G/GSM: 900/1800MHz
4G LTE-FDD: B1/B3/B5/B7/B8/B20
Working Frequency (Global)
2G GSM/GPRS: 850/900/1800/1900MHz
4G LTE CAT1: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66; LTE-TDD: B34/B38/B39/B40/B41
GNSS
GPS+BDS+GLONASS
GPS Frequency
L1: 1575.42±1.023MHz
BDS Frequency
B1:1561.098±2.046MHz
Satellite Channels
32
Hot/Cold Start
<1s，<32s @ Open Sky
GNSS Antenna
Built-in Ceramics GNSS Antenna, 25mm*25mm*4mm
Positioning Type
GNSS+LBS+AGPS
Accurancy
Location accuracy: <10m（1σ）
Timing accuracy: <30ns（1σ）
Speed accuracy: <0.1m/s（1σ）
Wide working voltage 9-95V DC
MV930G can be applied to various vehicles: car, truck,electric bike, motorcycle, bus, scooter etc.
Camouflage design and easy to hide

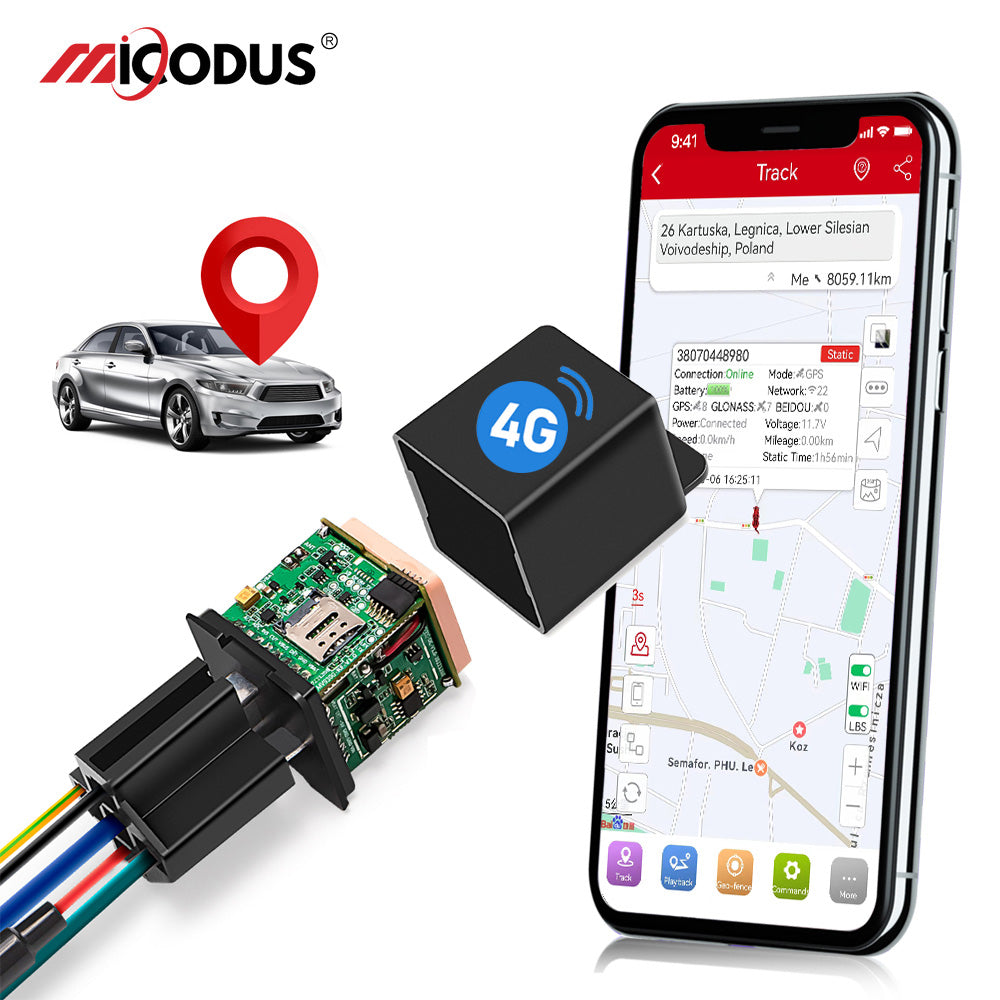

It's like a car relay, but is actually a relay GPS tracker. MV930G GPS tracker is installed inside the car, not easy to be found.
Vehicle Battery Voltage Detecting
MV930G can detect vehicle battery's voltage, and with low voltage alarm function
Realtime Tracking and History Playback
Realtime track your car unlimited on Google Maps and playback 180 days history route, helping you review trips and stops.
Historical Track Playback
Historical track playback, our server can store data for up to 180 days.
Remotely Cut Off Fuel
It can remotely cut off and restore the fuel circuit, which is suitable for vehicle theft or loss of control of the vehicle
ACC Status Detection
The mini gps tracker can remotely detect the status of the car engine and send alarms when the engine is turned on/off.
Signal Jamming Detection
When MV930G detects abnormal GPS signal reception it will automatically cuts off fuel/power to prevent vehicle theft
Multiple Anti-Theft Alarm
Multiple anti-theft alarm functions: Vibration alarm, Displacement alarm, Engine start and flameout alarm, Geo-fence alarm, Power failure alarm, Tow alarm
Firmware OTA
Support firmware upgrading remotely, keep your device always be the latest version
When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate
Without network, the device will disconnect with the server, but theGPS data will be saved by the built-in memory, 5000pcs GPS data can be stored at the most. once the network signal recovered the saved data will be uploaded to the tracking server.
Web Tracking Platform and Mobile APP
One year Free Micodus tracking system! Web server and both iOS and Android version APP are available!

www.micodus.net
APP: MiCODUS
