Lifetime free Micodus tracking system! Web server and both iOS and Android version APP are available!
www.micodus.net
APP: MiCODUS
Livestock Tracker Collar MiCODUS MP30G Cattle Horse Realtime Location 4G Waterproof Animal Tracking Device With 20000mAh Battery
Regular price
$70.79
Download
Couldn't load pickup availability
Main Features:
1. 4G LTE CAT1+ 2G GSM/GPRS
2. Realtime Tracking
3. History Route Playback
4. Positioning Type: GPS+BDS+GLONASS+AGPS+LBS
5. Built-in 3.7V 20000mAh Li-ion battery, can standby up to 50 days.
6. Waterproof IP67
7. Geo-fence
8. Motion and No Motion Alarm.
9. LIFETIME FREE Web Tracking Platform and Mobile APP.
10. The Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
1. 4G LTE CAT1+ 2G GSM/GPRS
2. Realtime Tracking
3. History Route Playback
4. Positioning Type: GPS+BDS+GLONASS+AGPS+LBS
5. Built-in 3.7V 20000mAh Li-ion battery, can standby up to 50 days.
6. Waterproof IP67
7. Geo-fence
8. Motion and No Motion Alarm.
9. LIFETIME FREE Web Tracking Platform and Mobile APP.
10. The Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
|
Model
|
MP30G
|
|
Weight
|
476.5g
|
|
Dimensions
|
110mm(L)*77mm(W)*46mm(H)
|
|
Battery
|
Built-in 20,000 mAh (3.7V polymer battery)
|
|
Waterproof Level
|
IP67
|
|
Working Voltage
|
3.4V-4.5V DC
|
|
Operating Voltage/Current
|
4V/60mA (average)
|
|
Standby Voltage/Current
|
4V/5mA (average)
|
|
Working Temperature
|
-20°C – 75°C
|
|
Storage temperature
|
-30°C – 80°C
|
|
Working Humidity
|
10%-85%RH (non-condensing)
|
|
SIM Card
|
Nano SIM
|
|
Celluar Antenna
|
Built-in, FPC
|
|
Communication Module & Chip
|
SIMCOM 7670C-LASE
|
|
Working Frequency
|
MP30G-SA
2G GSM/GPRS: 850/900/1800/1900MHz
4G LTE-FDD: B1/B2/B3/B4/B5/B7/ B8/B28/B66
|
|

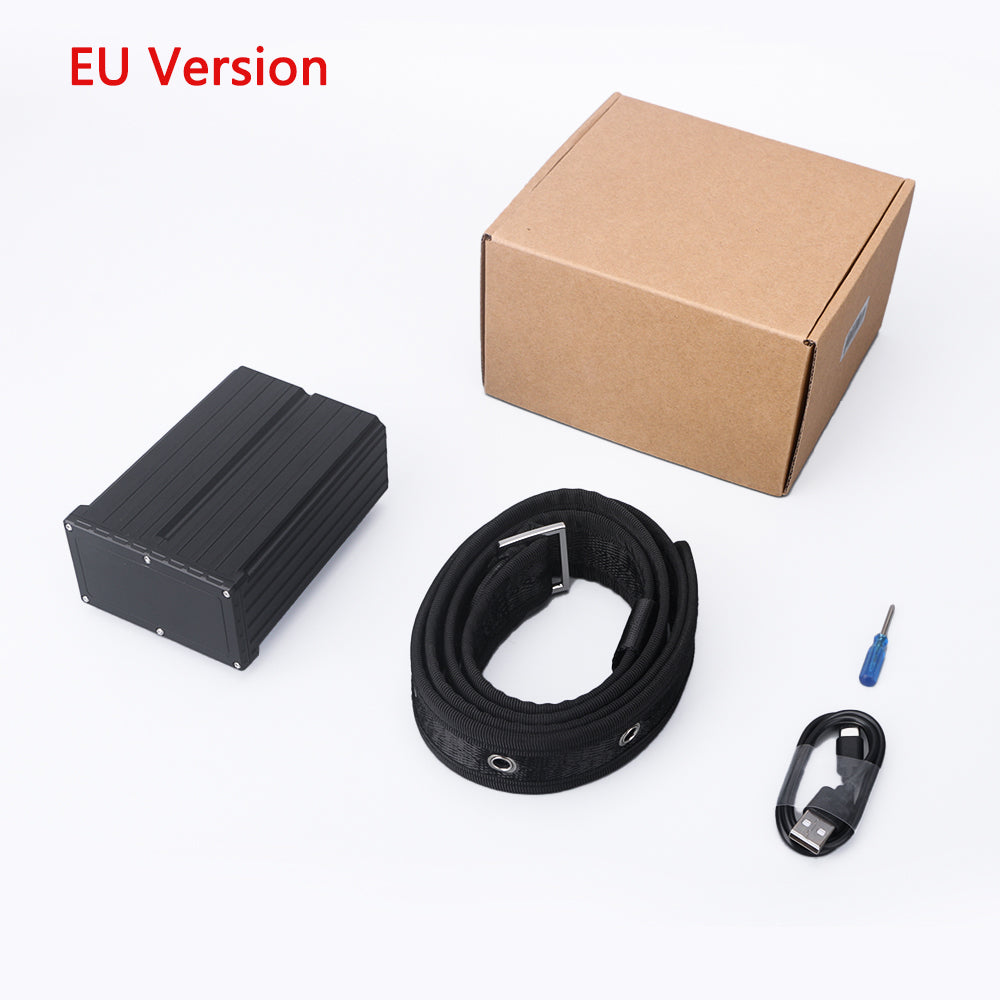

MP30G-EU
2G/GSM: 900/1800MHz
4G LTE-FDD: B1/B3/B5/B7/B8/B20
|
|
|
GNSS
|
GPS+BDS+GLONASS+AGPS
|
|
Positioning Module Brand/Chip
|
AT6558R
|
|
Tracking sensitivity
|
-162 dBm
|
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Satellite Channels
|
32
|
|
Cold Start Time
|
Average 32 seconds
|
|
Warm-up time
|
Average 1 second
|
|
Antenna Specifications
|
18mm × 18mm × 2mm
|
|
Positioning Type
|
GPS+BDS+GLONASS+LBS+AGPS
|
|
Accurancy
|
Location accuracy: <2m（1σ）
|
|
Timing accuracy: <30ns（1σ）
|
|
|
Speed accuracy: <0.1m/s（1σ）
|
|
|
Charging port
|
1 channel
|
Product Applications
Designed for livestock tracking and pasture management, widely applied to cattle, sheep, horses, yaks and other grazing animals. Ideal for farms, pastures, mountain grazing areas and livestock free-range breeding scenarios.
Real Time Tracking &History Route Playback
Manual pasture patrols are inefficient and unreliable, making it hard to monitor livestock activity and trace missing cattle and sheep. This device delivers real-time location tracking and full historical route playback, allowing you to master herd movement status at all times and avoid breeding losses.
Waterproof IP67
IP67 full waterproof design adapts to all harsh outdoor weather, ensuring stable long-term operation for livestock outdoor grazing.
Motion Alarm & No Motion Alarm
Motion and no-motion dual alarm function monitors livestock activity status intelligently, instantly reminds you of abnormal behaviors, and realizes unattended safe breeding.
20000mAh Battery
Meet the long-term uninterrupted monitoring needs of outdoor breeding. 20000mAh large-capacity battery delivers up to 120 days ultra-long standby, ensuring continuous device operation and reducing maintenance frequency.
Multiple Function
Geo-fence, Low Battery Alarm, Data Storage In Blind Area, Remotely OTA Upgrade
Web Tracking Platform and Mobile APP
