Plug and Play Wired Motorbike GPS Tracking Device 4G MiCODUS MV700G Wholesale Car GPS Tracker Real Time Location Anti-theft
Couldn't load pickup availability
| Model |
MV700G
|
|
Weight
|
57g
|
|
Dimensions
|
79mm(L)*33mm(W)*16mm(H)
|
|
Working Voltage
|
DC 9V - 95V
|
|
Working Current
|
12V/average 35mA
|
|
Sleep Current
|
12V/average 10mA
|
|
Built-in Battery
|
280 mAh 3.7V polymer battery
|
|
Working Temperate
|
-20℃ - 75℃
|
|
Storage Temperature
|
-30℃ - 80℃
|
|
Working Humidity
|
10%-85% RH non-condensing
|
|
Network and Bands
|
Working Frequency (SA)
2G GSM/GPRS: 850/900/1800/1900MHz
4G LTE-FDD: B1/B2/B3/B4/B5/B7/ B8/B28/B66
|
|
Working Frequency (EU)
2G/GSM:900/1800MHz
4G LTE-FDD: B1/B3/B5/B7/B8/B20
|
|
|
SIM Type
|
Nano SIM Card
|
|
Positioning Type
|
BDS+GPS+GLONASS+LBS
|
|
Cold Start
|
Average 32s
|
|
Hot Start
|
Average 1s
|
|
Sensitivity
|
-162 dBm
|
|
Positioning Antenna
|
Built in ceramic dielectric antenna
|
|
Antenna Size
|
18mm * 18mm * 4mm
|
|
GPS Bands
|
L1:1575.42±1.023MHz
|
|
BDS Bands
|
B1:1561.098±2.046MHz
|
|
Channels
|
32
|
|
Accuracy
|
<10m（1σ）
|
MV700G works with the latest 4G LTE CAT1 network, fast and stable,and backward compatible with 2G GSM network, applicable to all countries in the world
Wide voltage 9-95V DC can be applied to various vehicles: cars, trucks, electric vehicles, motorcycles, bus etc
Gogle maps real-time tracking, the minimum data upload time interval is 5 seconds

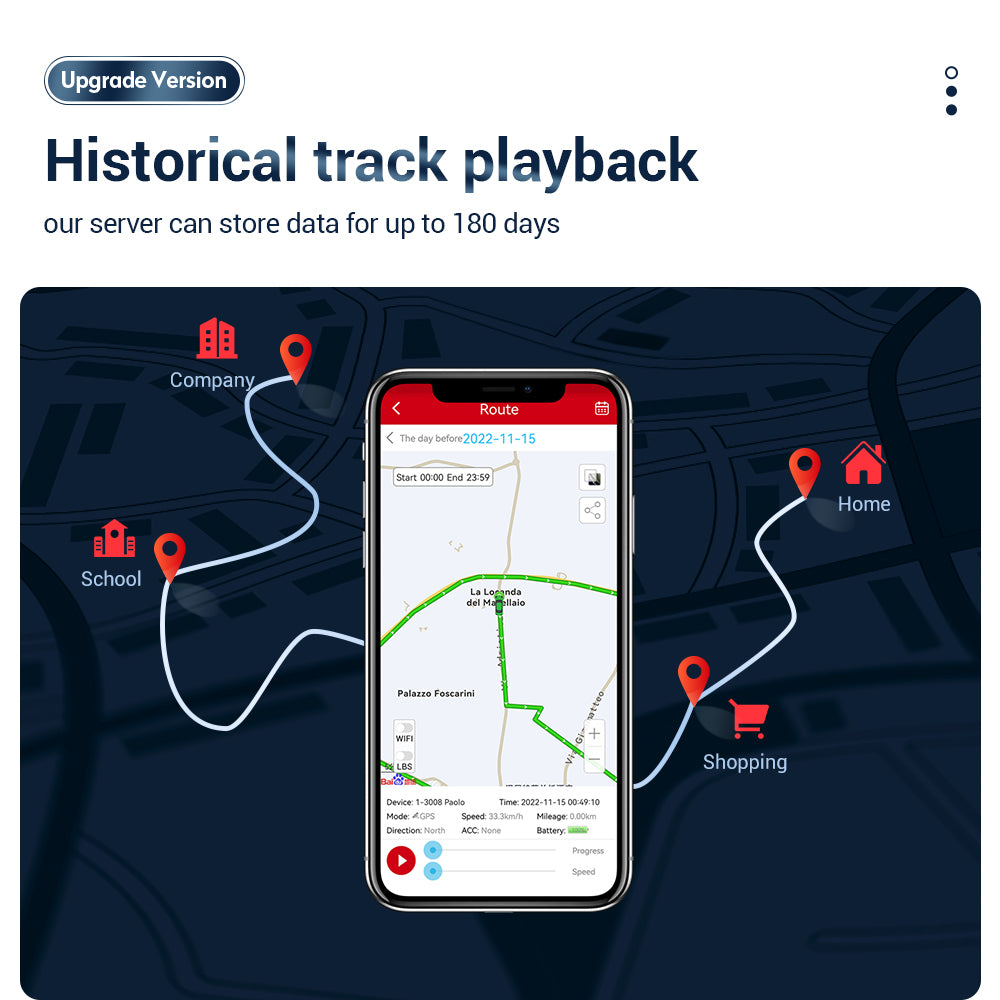

Historical track playback, our server can store data for up to 180 days
MV700G can detect vehicle battery's voltage, and with low voltage alarm function
Without network, thedevice will disconnect with the server, but the GPS data will be saved by the built-in memory, 5000pcs GPS data canbe stored at the most.once the network signal recovered the saved data will be uploaded to the tracking server.
When turning, the device will upload a GPS data in order to reflect the details of turning, the uploaded positioning data will be more denser and the trajectory query is more accurate
Support firmware upgrading remotely, keep your device always be the latest version
Multiple anti-theft alarm functions: Vibration alarm, Displacement alarm, Overspeed alarm, Geo-fence alarm, Power failure alarm, Tow alarm
One Year Free Web Tracking Platform and Mobile APP
www.micodus.net
APP: MiCODUS
