Easy Install Intelligent Car GPS Tracking Device 4G MiCODUS MV880G Accurate Motorcycle GPS Tracker With Explosion-proof Battery
Regular price
$36.90
Download
Couldn't load pickup availability
Main Features:
1. Easy to Install
2. Network: 4G LTE FDD + 2G GSM
3. Working Voltage 9-95V DC
4. IP67 Waterproof
2. Network: 4G LTE FDD + 2G GSM
3. Working Voltage 9-95V DC
4. IP67 Waterproof
5. ACC Status Detection
6. Blind Area Data Storage
7. Remote OTA Upgrade
8. Real Time Tracking
9. History route playback
10. Big Ceramic Antenna
11. Remote OTA Upgrade
12. Multiple Alarms: Geofence, Overspeed Alarm, vibration Alarm, Movement Alarm, Cut Wire Alarm, Low Voltage Alarm, Engine Start/Stop Alarm
13. ONE YEAR FREE TRACKING SOFTWARE.
14. MiCODUS Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
14. MiCODUS Tracking Platform Supports Multiple Languages.
www.micodus.net
iOS&Android APP: Micodus
|
Model
|
MV880G
|
|
Weight
|
104.3g
|
|
Dimensions
|
58*21*70mm
|
|
Battery
|
NI-MH battery AAAAA200T*3 3.6V 200mAh
|
|
Working Voltage
|
9-95V DC
|
|
Working Current
|
12V/Average 34.90mA
|
|
Sleep Current
|
12V/Average 5.98mA
|
|
Working Temperature
|
-20℃ - 75℃
|
|
Working Humidity
|
10%-85%RH
|
|
Built-in Memory
|
720pcs GPS data can be stored at network blind area
|
|
SIM Card
|
Nano SIM
|
|
Celluar Antenna
|
Built-in, FPC
|
|
Model of Communication Module
|
SIMCOM A7670G
|
|
Working Frequency
|
2G GSM/GPRS: 850/900/1800/1900MHz
|
|
4G LTE-FDD： B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
LTE-TDD：B34/B38/B39/B40/B41
|
|
|
Model of Positioning Module
|
Beken Corporation BK1661
|
|
GNSS Antenna
|
Built-in Ceramics GNSS Antenna, 35mm*35mm*4mm
|
|
GNSS
|
L1 Bands: GPS L1, Beidou B1, GLONASS G1
|
|
GPS Frequency
|
L1: 1575.42±1.023MHz
|
|
BDS Frequency
|
B1:1561.098±2.046MHz
|
|
Satellite Channels
|
120
|
|
Hot/Cold Start
|
<1s，<28s @ Open Sky
|
|
GNSS Antenna
|
Built-in Ceramics GNSS Antenna, 35mm*35mm*4mm
|
|
Positioning Type
|
GNSS+BDS+LBS+AGPS
|
|
Accurancy
|
Location accuracy: <1.5mCEP
|
|
AGPS First positioning time< 1.5 s
|
|
|
Timing accuracy: <30ns（1σ）
|
|
|
Speed accuracy: <0.1m/s（1σ）
|
Product Application
9-95V wiede working voltage, suitable for Cars, elec-tric scooters, motorcycles, trucks and fleets.
9-95V wiede working voltage, suitable for Cars, elec-tric scooters, motorcycles, trucks and fleets.
IP67 Waterproof
The device can be used normally on rainy days or muddy roads.

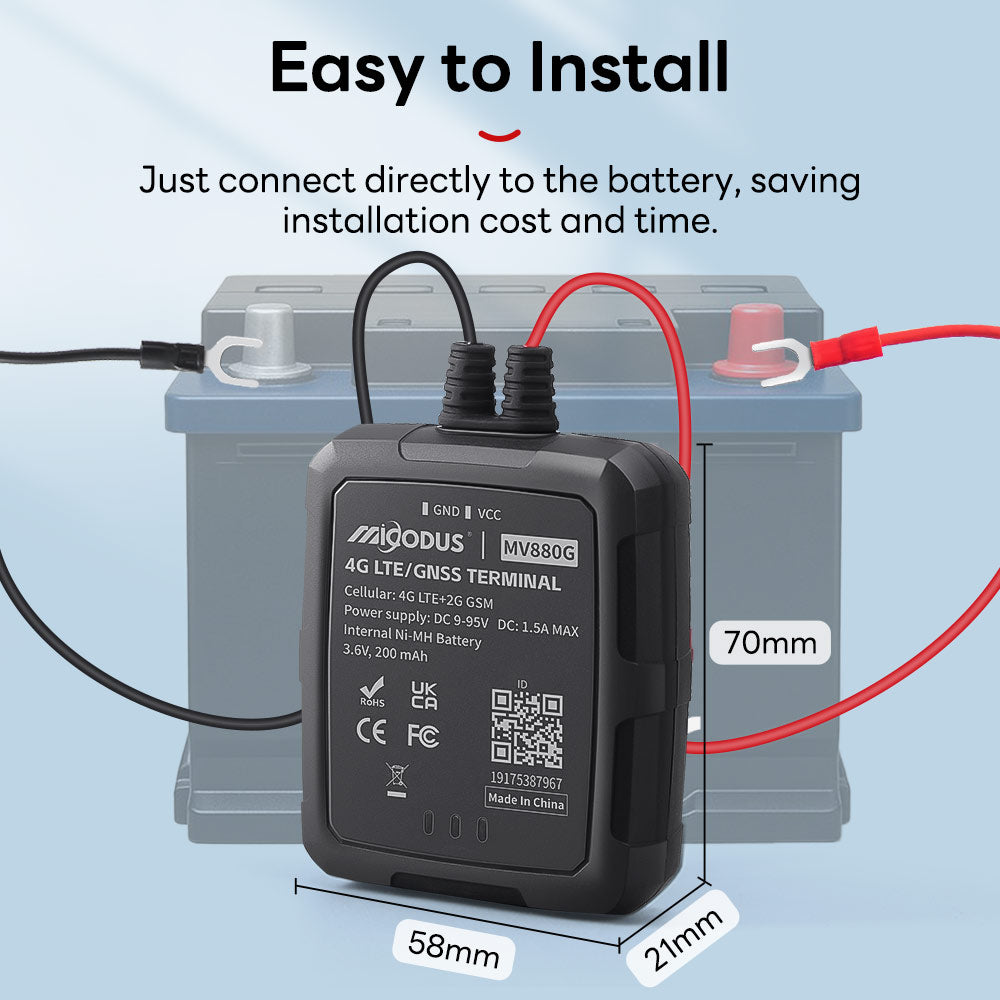

Easy to Install
Just connect directly to the battery, saving installation cost and time.
Just connect directly to the battery, saving installation cost and time.

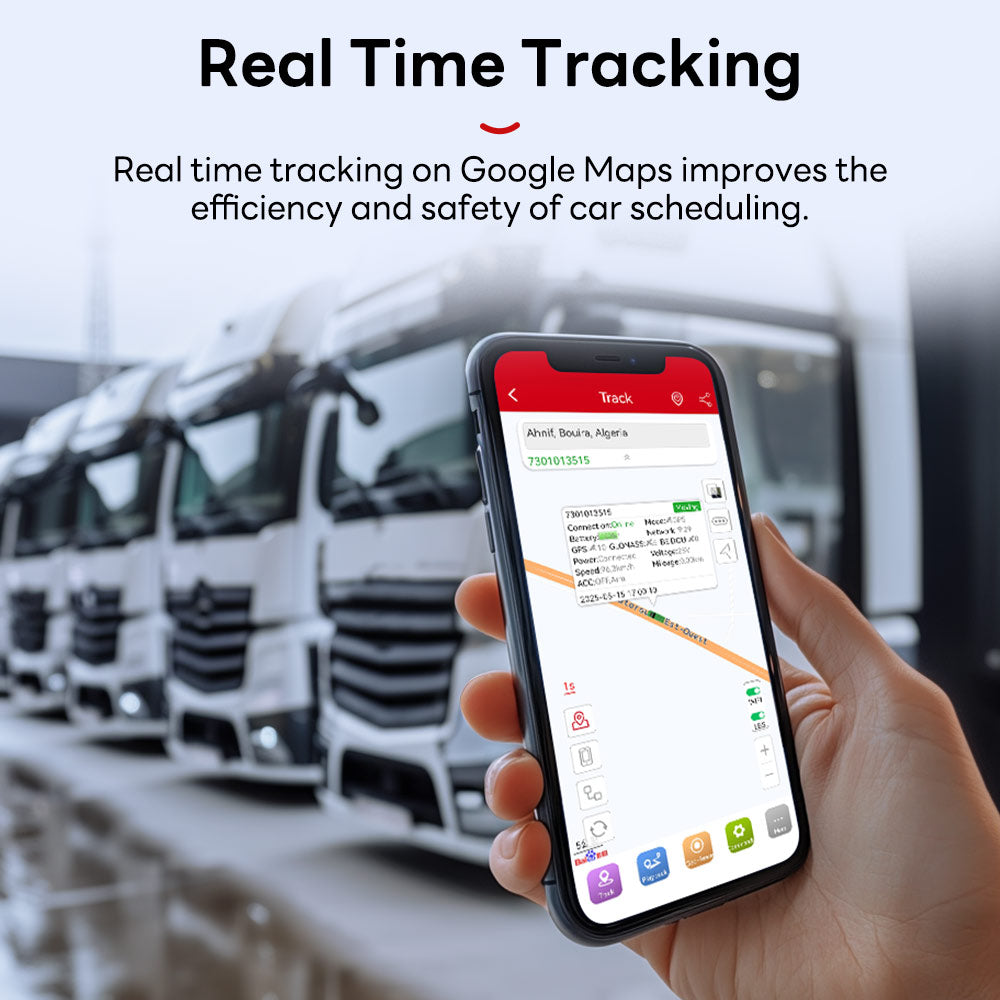

Real Time Tracking
Real time tracking on Google Maps improves the efficiency and safety of car scheduling.
Historical Route Playback
Record driving routes, stopping points, speed changes, etc. for the past 6 months for trip review, management planning, etc.

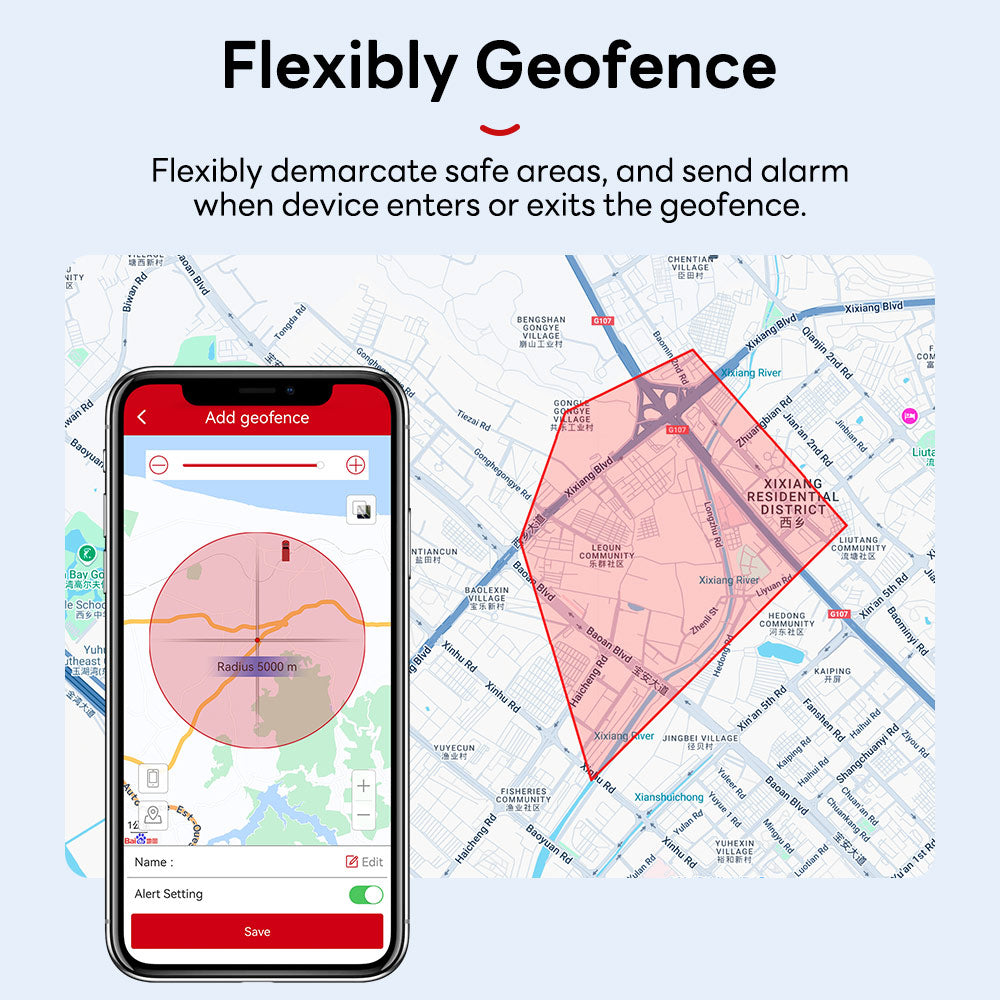

Flexibly Geofence
Flexibly demarcate safe areas, and send alarm when device enters or exits the geofence.
Blind Area Data Storage
Entering tunnels, basements, and other network signal blind spots, GPS location data will be automatically stored to avoid tracking "blanks".
Multiple Alarms
Support multiple alarm methods: call, SMS, platform, and email.
Remote OTA Upgrade
Remotely upgrading firmware, the device can achieve functional optimization and stability improvement, saving maintenance costs.
Large GPS Antenna
Featuring a built-in 35*35*4mm oversized ceramic antenna and explosion-proof manganese-zinc battery, the device delivers enhanced stability and safety.
Web Tracking Platform and Mobile APP
One Year Free Micodus tracking system! Web server and both iOS and Android version APP are available!
www.micodus.net
APP: MiCODUS
www.micodus.net
APP: MiCODUS
